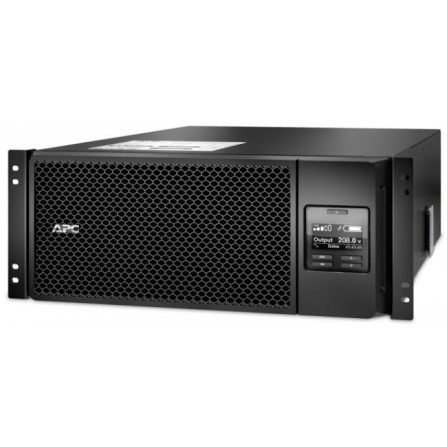

APC SRT6KRMXLI Smart-UPS SRT 6000VA 230V

SGD $5,679.00
Tax excluded

APC SRT6KRMXLI Smart-UPS SRT 6000VA 230V
Model: SRT6KRMXLI

Includes: CD with software , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SRT6KRMXLI Smart-UPS SRT 6000VA 230V
Model: SRT6KRMXLI

Includes: CD with software , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card

Output

Output power capacity

6.0 KWatts / 6.0 kVA

Max Configurable Power (Watts)

6.0 KWatts / 6.0 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G)

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load)V

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

1.5hour(s)

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

APC-Smart-UPS-SRT-6000VA-RM-230V



Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

174mm , 17.4cm

Maximum Width

432mm , 43.2cm

Maximum Depth

719mm , 71.94cm

Rack Height

4U

Net Weight

60.0kg

Shipping weight

67.0kg

Shipping Height

370mm , 37.0cm

Shipping Width

610mm , 61.0cm

Shipping Depth

960mm , 96.0cm

Color

Black

Units per Pallet

6.0

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95% non-condensing %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95% non-condensing %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1300.0BTU/hr

Protection Class

IP 20

Conformance

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

SRT6KRMXLI

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack
Power Rated VA
6000
