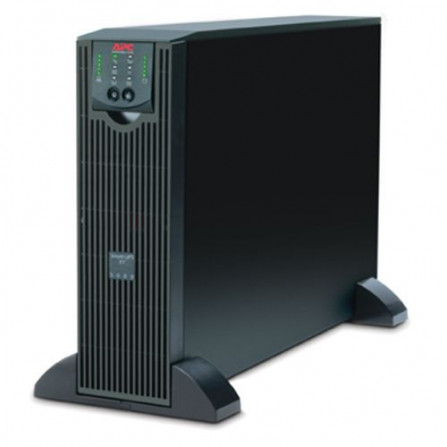

APC Smart-UPS RT 5000VA 230V-SURTD5000XLI

SGD $4,299.00
Tax excluded

APC Smart-UPS RT 5000VA 230V-SURTD5000XLI
Model: SURTD5000XLI

Includes: CD with software , User Manual , Web/SNMP Management Card

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC Smart-UPS RT 5000VA 230V-SURTD5000XLI
Model: SURTD5000XLI

Includes: CD with software , User Manual , Web/SNMP Management Card

Output

Output Power Capacity
3500 Watts / 5000 VA
Max Configurable Power
3500 Watts / 5000 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
92.00%
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Waveform Type
Sine wave

Output Connections
(8) IEC 320 C13
(2) IEC 320 C19
(6) IEC Jumpers

Input

Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3-wire
Input voltage range for main operations
160 - 280V
Input voltage adjustable range for mains operation
100 - 280V
Other Input Voltages
220,240

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
2.50 hour(s)
Replacement battery cartridge
RBC44
RBC Quantity
1
Typical Backup Time
at Half Load
15.4 minutes (1750 Watts)
Typical Backup Time
at Full Load
5.0 minutes (3500 Watts)



Communications & Management

Interface Port(s)
DB-9 RS-232,RJ-45 10/100 Base-T,Smart-Slot
Pre-Installed SmartSlot Cards
AP9619
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
480 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
432.00 mm
Maximum Width
130.00 mm
Maximum depth
660.00 mm
Rack Height
3U
Net Weight
54.55 KG
Shipping Weight
63.64 KG
Shipping Height
347.00 mm
Shipping Width
603.00 mm
Shipping Depth
980.00 mm
Color
Black
Units per Pallet
6.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
1040.00 BTU/hr

Conformance

Regulatory Approvals
C-tick,CE,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,VDE
Standard Warranty
2 years repair or replace,optional on-site warranties available,optional extended warranties available
SURTD5000XLI

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
5000
