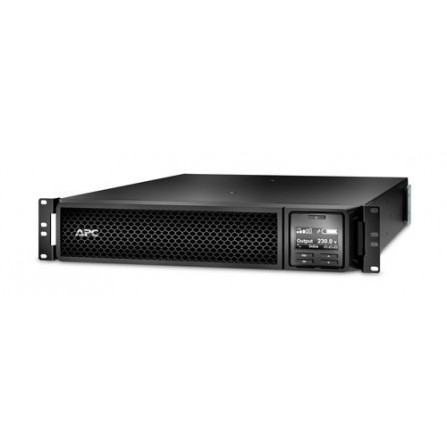

APC SRT3000RMXLI Smart-UPS SRT 3000VA RM 230V

SGD $3,399.00
Tax excluded

APC SRT3000RMXLI Smart-UPS SRT 3000VA RM 230V
Model:
SRT3000RMXLI

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack Mounting support rails , USB cable , Warranty card

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SRT3000RMXLI Smart-UPS SRT 3000VA RM 230V
Model:
SRT3000RMXLI

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack Mounting support rails , USB cable , Warranty card

Output

Output power capacity

2.7 KWatts / 3.0 kVA

Max Configurable Power (Watts)

2.7 KWatts / 3.0 kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 2%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double Conversion Online

Waveform type

Sine wave

Output Connections
(2) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Bypass

Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage

230V

Input frequency

40 - 70 Hz (auto sensing)

Input Connections

British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P

Cord Length

2.44meters

Input voltage range for main operations

160 - 275V

Input voltage adjustable range for mains operation

100 - 275 (half load)V

Number of Power Cords

1

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

1

Typical recharge time

3hour(s)

Nominal Battery Voltage

96V

Replacement Battery

APCRBC152

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

505

Communications & Management

Interface Port(s)

RJ-45 Serial , Smart-Slot , USB

Control panel

Multi-function LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

340Joules

Filtering

--

Physical

Maximum Height

85mm , 8.5cm

Maximum Width

432mm , 43.2cm

Maximum Depth

635mm , 63.5cm

Rack Height

2U

Net Weight

31.3kg

Shipping weight

39.92kg

Shipping Height

246mm , 24.6cm

Shipping Width

599mm , 59.9cm

Shipping Depth

871mm , 87.1cm

Color

Black

Units per Pallet

6.0

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95% non-condensing %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95% non-condensing %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

703.0BTU/hr

Protection Class

IP 20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR (EU), RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

SRT3000RMXLI

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack
Power Rated VA
3000
