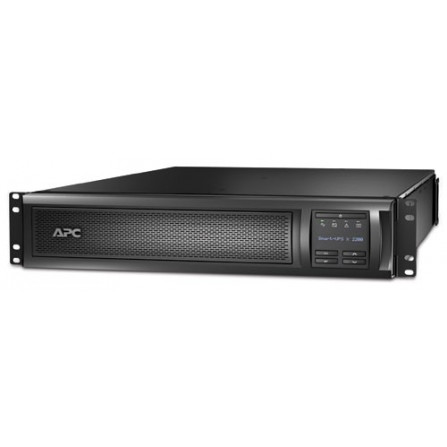

APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V

SGD $2,688.00
SGD $2,199.00 Save SGD $523.23
Tax excluded

APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Model:
SMX2200RMHV2U

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Model:
SMX2200RMHV2U

Output

Output power capacity

1.98 KWatts / 2.2 kVA

Max Configurable Power (Watts)

1.98 KWatts / 2.2 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Other Output Voltages

208, 220, 240

Topology

Line Interactive

Waveform type

Sine wave

Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
Transfer Time

2-4 ms

Transfer Time

6ms typical : 10ms maximum

Input

Nominal Input Voltage

208V , 230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

Cord Length

1.83 meters

Input voltage range for main operations

140 - 280 V

Number of Power Cords

1

Other Input Voltages

220, 240

Transfer Time

2-4 ms

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Replacement Battery

APCRBC117

RBC Quantity

1

Extendable Run Time

1

Battery Volt-Amp-Hour Capacity

702

Extended Run Options

APC-Smart-UPS-X-2200VA-Rack-Tower-LCD-200-240V

Communications & Management

Interface Port(s)

SmartSlot , USB

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

645 Joules

Data Line Protection

--

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

85 , 8.5 cm

Maximum Width

432 , 43.2 cm

Maximum Depth

667 , 66.7 cm

Rack Height

2 U

Net Weight

37.32 kg

Shipping weight

45.36 kg

Shipping Height

243 , 24.3 cm

Shipping Width

596 , 59.6 cm

Shipping Depth

869 , 86.9 cm

Color

Black

Pallet Dimensions

39.369999999999997 inches

# of Layers per Pallet

4.0

# of Units per Layer per Pallet

2.0

Pallet Weight

855.12 lbs.

Units per Pallet

8.0

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

55.0 dBA

Online thermal dissipation

150.0 BTU/hr

Conformance

Approvals

C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE

Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery

SMX2200RMHV2U

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
2200
