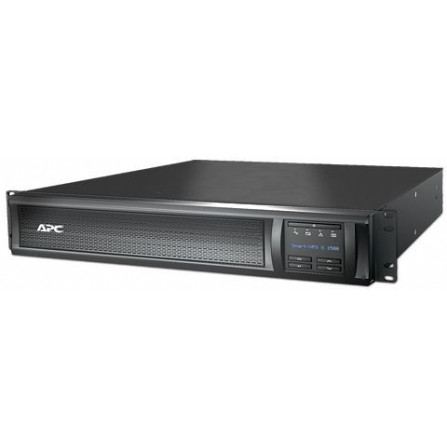

APC SMX1500RMI2UNC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card

SGD $1,819.00
Tax excluded

APC SMX1500RMI2UNC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card
Model:
SMX1500RMI2UNC

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Removable support feet , Smart UPS signalling RS-232 cable , USB cable

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SMX1500RMI2UNC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card
Model:
SMX1500RMI2UNC

Includes: CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Removable support feet , Smart UPS signalling RS-232 cable , USB cable

Output

Output power capacity

1.2 KWatts / 1.5 kVA

Max Configurable Power (Watts)

1.2 KWatts / 1.5 kVA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains)

50/60Hz +/- 3 Hz

Topology

Line Interactive

Waveform type

Sine wave

Output Connections
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Cord Length

1.83meters

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Number of Power Cords

1

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

APCRBC115

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Volt-Amp-Hour Capacity

311

Extended Run Options

APC-Smart-UPS-X-1500VA-Rack-Tower-LCD-230V-with-Network-Card

Runtime

Communications & Management

Interface Port(s)

SmartSlot , USB

Pre-Installed SmartSlot Cards

AP9631

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

645Joules

Filtering

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

89mm , 8.9cm

Maximum Width

432mm , 43.2cm

Maximum Depth

490mm , 49.0cm

Rack Height

2U

Net Weight

24.82kg

Shipping weight

30.0kg

Shipping Height

246mm , 24.6cm

Shipping Width

589mm , 58.9cm

Shipping Depth

620mm , 62.0cm

Color

Black

Units per Pallet

8.0

Environmental

Operating Environment

0 - 45 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

40.0dBA

Online thermal dissipation

133.0BTU/hr

Conformance

Approvals

C-tick, CE, EN 50091-1, EN 50091-2, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 year for battery

SMX1500RMI2UNC

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
1500
