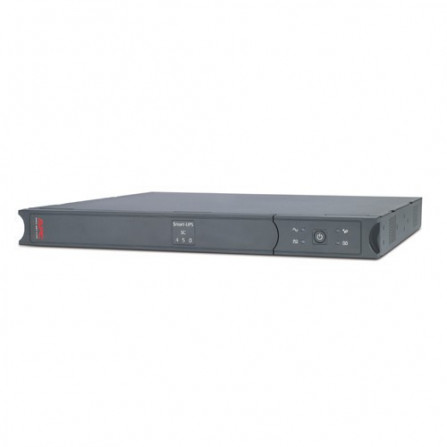

APC SC450RMI1U Smart-UPS SC 450VA 230V - 1U Rackmount Tower

SGD $445.00
Tax excluded

APC SC450RMI1U Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
Model:
SC450RMI1U

APC Smart-UPS SC, 450VA/280W, Input 230V/Output 230V, Interface Port DB-9 RS-232, Rack Height 1 U

Includes: CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, User Manual

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SC450RMI1U Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
Model:
SC450RMI1U

APC Smart-UPS SC, 450VA/280W, Input 230V/Output 230V, Interface Port DB-9 RS-232, Rack Height 1 U

Includes: CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, User Manual

Output

Output power capacity

280Watts / 450VA

Max Configurable Power (Watts)

280Watts / 450VA

Nominal Output Voltage

230V

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Output Connections
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C13 (Battery Backup)
Transfer Time

4ms typical : 8ms maximum

Input

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C14

Input voltage range for main operations

195 - 265V

Input voltage adjustable range for mains operation

151 - 302V

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

5hour(s)

Replacement Battery

RBC18

Expected Battery Life (years)

3 - 5

RBC Quantity

1



Communications & Management

Interface Port(s)

DB-9 RS-232

Control panel

LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Optional

Surge Protection and Filtering

Surge energy rating

320Joules

Data Line Protection

RJ-11 2-Way Modem/Fax/DSL splitter with protection (four wire dual lines), RJ45 10/100 Base-T Ethernet protection

Filtering

Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

44mm , 4.4CM

Maximum Width

432mm , 43.2CM

Maximum Depth

383mm , 38.3CM

Rack Height

1U

Net Weight

10.18KG

Shipping weight

11.73KG

Shipping Height

164mm , 16.4CM

Shipping Width

476mm , 47.6CM

Shipping Depth

589mm , 58.9CM

Color

Grey

Units per Pallet

24.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

38.0dBA

Online thermal dissipation

38.0BTU/hr

Conformance

Approvals

C-tick, CE, GOST, VDE

Standard warranty

2 years repair or replace





SC450RMI1U

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
450
