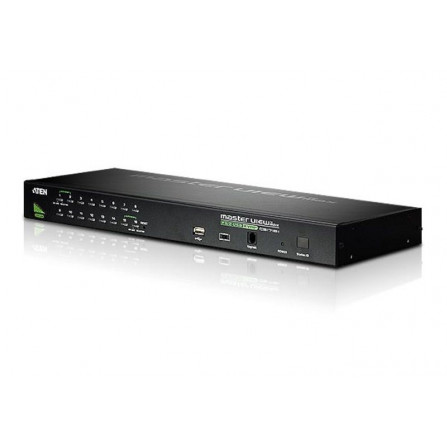

Aten CS1716A 16-Port PS/2-USB KVMP Switch

SGD $1,129.00
Tax excluded

Aten CS1716A 16-Port PS/2-USB KVMP Switch
Model:
CS1716A

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

Features

One USB-PS/2 console controls up to 16 computers
Daisy-chain up to 31 additional units - control up to 512 computers from a single console
Front accessible USB port allows each computer to access USB peripherals*
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each
Auto Scan feature for monitoring user-selected computers
Broadcast Mode - operation simultaneously performed on all selected computers... etc
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable
Rack mountable in 19" system rack (1U)

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Package Content

1x KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cable Sets
1x Console Cable
1x Firmware Upgrade Cable
1x Grounding Wire
1x Foot Pad Set(4 PCS)
1x Power Adapter
1x User Manual
1x Quick Start Guide

Specification

Computer Connections
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-15/17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
USB Port 1 x USB Type A Female
Power 1 x DC Jack Female (Black)
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
Switches
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1 – 255 Seconds (Default: 5 secs)
Power Consumption DC5.3V:5.31W:40BTU
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.85 kg ( 6.28 lb )
Dimensions (L x W x H) 43.72 x 15.99 x 4.40 cm
(17.21 x 6.3 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

CS1716A

Data sheet

Special Features
Cascadable
Hot-pluggable
USB 2.0
Video DynaSync™
Console Interface
PS/2
USB
Max. Resolution
2048 x 1536

Download

Datasheet - CS1716A

Download (284.97k)

Quick Start Guide - CS1716A

Download (5.23M)

User Manual - CS1716A

Download (1.31M)
