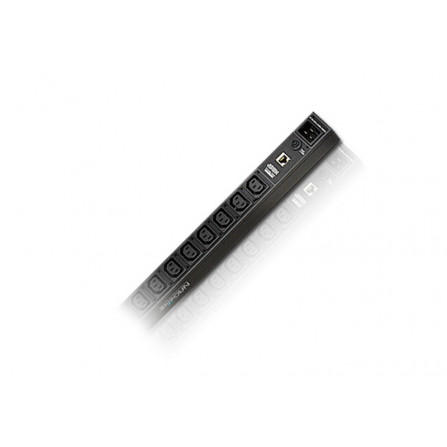

Aten PE1216G Energy PDU

SGD $469.00
Tax excluded

Aten PE1216G Energy PDU
Model:
PE1216G

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.

Package Contents


1x PE1216 Energy PDU
1x Power Cord
1x Mounting Kit
1x User Instructions
Feature
Space saving 0U rack mount design
IEC or NEMA outlet models
Real-time PDU current monitoring *
Specification

Function PE1216G
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 16A(Max)
Input Frequency 50-60 Hz
Input Connection IEC 60320 C20
Input Power 3680 VA(Max)
Outlet Type Total: 16 x IEC320 C13
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) 10A(Max)
Maximum Output Current (Bank) 16A(Max)
Maximum Output Current (Total) 16A(Max)
Breakers 1 x 16A Non-Fuse Breaker
Metering Bank Level Current Monitoring (Via EC1000 Energy Box)
Outlet Switching None
Environment Sensor Ports 0
Metering Accuracy Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 73.00 x 4.40 x 4.40 cm
(28.74 x 1.73 x 1.73 in.)
Weight 1.32 kg ( 2.91 lb )
Power Cord Length 3 m
Environmental
Temperature (Operating / Storage) 0–50°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing
Compliance
EMC Verification CE, C-Tick, Others by Request
Safety Verification TUV-CB, GOST, Others by Request
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
PE1216

Data sheet

Input Plug
IEC C20
NEMA5-20P
NEMA6-20P

Download

Aten Datasheet - PE1216G

Download (963.91k)

Aten User Manual - PE1216G

Download (1.27M)
