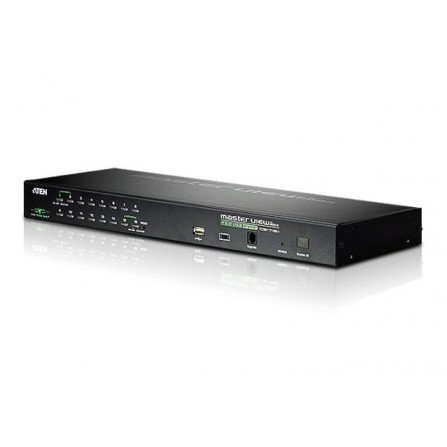

Aten CS1716i 16-Port PS2 USB KVM on the NET

SGD $1,699.00
Tax excluded

Aten CS1716i 16-Port PS2 USB KVM on the NET
Model:
CS1716i

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The CS1716i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1716i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

Package Contents

1x CS1716i KVM over IP Switch
1x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom KVM Cable (VGA, PS/2; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs)
1x Power Adapter
1x User Manual
1x Quick Start Guide
1x Software CD
Feature
  • Management
  • Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Up to 32 concurrent logins
  • Multilanguage web UI support featuring a tree-structured local and remote OSD
  • Adjustable video quality for flexible adaptation to diverse network environments
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).
  • Firmware upgradable
  • Backup and restore configuration and user account settings
  • Event logging
  • Enable/disable browser access
  • IPv6 capable
  • Ease-to-Use Interface
  • Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Port names automatically reconfigured when station sequence is changed
  • Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
  • Windows client and Java client software support; Java client works with all operating systems
  • Advanced Security
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
  • Two level password security - up to 64 user accounts with separate profiles for each
  • External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
  • Support for IP/MAC Filter
  • Local and remote access logged and authenticated
  • Virtual Remote Desktop
  • Resizable remote desktop window
  • Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
  • Mouse DynaSync™
  • On-screen keyboard with multilanguage support
  • BIOS-level access
  • Hardware
  • 16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console
  • Daisy chain up to 15 additional units - control up to 256 computers from a single console*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  • Hot pluggable - add or remove computers without having to power down the switch
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Front panel USB hub allows connected computers to access USB peripherals
  • Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Supports USB keyboards for PC, Mac and Sun
  • Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
  • Rack mountable in a 19" (1U) system rack
Specification
Computer Connections
Direct 16
Maximum 256 (via daisy chain)
Port Selection OSD/GUI; Hotkey; Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
KVM Ports 16 x SPHD-17 Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11
USB Port 1 x USB Type A Female
Switches
Reset 1 x Semi-recessed Pushbutton
Port Selection 16 x Pushbutton
Firmware Upgrade Recovery 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
10/100 Mbps 1 (Orange/Green - at LAN port)
Emulation
Keyboard / Mouse PS/2, USB
Video
Local 2048 x 1536; DDC2B
Remote FHD : 1920 x 1200 @ 60Hz
Non-FHD : 1600 x 1200 @ 60Hz
Scan Interval 1–255 sec.
Power Consumption DC5.3V:9.2W:58BTU
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 3.00 kg ( 6.61 lb )
Dimensions (L x W x H) 43.72 x 15.96 x 4.40 cm
(17.21 x 6.28 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Carry-In Warranty

CS1716i

Data sheet

Special Features
Hot-pluggable
Console Interface
PS/2
USB
Max. Resolution
2048 x 1536

Download

Datasheet - CS1716I

Download (1.24M)

Quick Start Guide - CS1716I

Download (4.85M)

User Manual - CS1716I

Download (4.24M)
