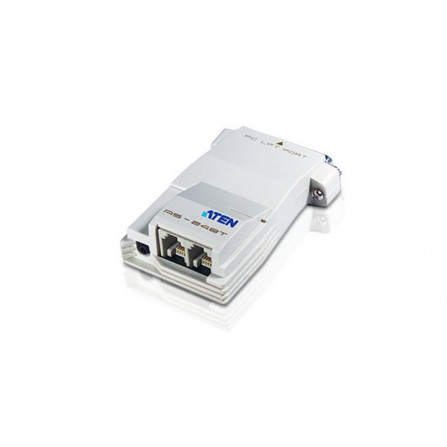

Aten AS248R Flashnet, Receiver

SGD $89.00
Tax excluded

Aten Flashnet, Receiver - AS248R

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

AS248R allows users to share 8 printers via a maximum of 64 computers through switching (24 by default). It is a helpful device to SMEs.

Features

At least 24 PCs can share 8 Centronics printers with the AS248 network by means of 4-wire phone lines.
Simultaneous printing capability.
Works in bus/star/tree topologies.
Data Transfer rate: 22 Kbytes per second.
Cable distance of up to 366m (1200').
Easy Installation.
Selects printers by software code operation.
No external power required.

Specification

Function AS-248T AS-248R
Connectors Input 1 x DB-25 Male 2 x 6P4C Jacks
Output 2 x 6P4C Jacks 1 x Centronics
C-36 Male
Power Consumption DC9V, 0.02W
Data Transfer Rate 22 Kbytes/ Sec. (Max.)
I/O Arbitration First Come First Served
Printer Selection Auto/Manual
Auto Form Feed Selection Enable / Disable
Timeout Selection 5, 10, 25, 60 Second
Environment Operating Temp. 0 ° ~50° C
Storage Temp. -20° ~ 60° C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 47 g 50 g
Dimension
( L x W x H )
8.20 x 5.40 x 2.60 cm 7.60 x 5.30 x 2.10 cm

Warranty: 1 Year Local Warranty

AS248R

Download

User Manual - AS248R

Download (42.84k)
