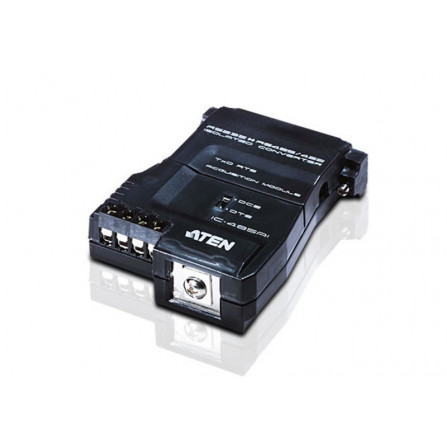

Aten IC485AI RS-232 to RS-482/RS-485 Bidirectional Converter

SGD $159.00
Tax excluded

Aten IC485AI RS-232 to RS-482/RS-485 Bidirectional Converter

Model: IC485AI

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

IC485AI is a 2-way converter converting RS-232 signals into RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). Its built-in RS-485 automatic flow and direction monitoring function can suppress signal surge.

Features

Automatic internal RS-485 bus supervision.
No external flow control signals for RS-485 required.
Transient suppression on RS-485 data lines.
DCE / DTE selectable.
Point-to-Point; Multidrop; and Simplex operating modes.
Four wire full duplex; two wire half duplex.
LEDs for easy status monitoring.
Minimum 2000V isolation protection.
Compact size• Cable distance of up to 1200m (4000 ft.).
Supports baud rates up to 115.2kbps.
OS Support: Windows 2000, Windows XP

Specification

Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
Grounding Tab
Switches DCE, DTE
Segment 1~3: Baud Rate;
Segment 4: Reserved;
Segment 5~6: Data Format (bits);
Segment 7~8: RS-422 / RS-485 Operating Mode
Power Consumption DC9V, 0.9W (Max)
Signal Range 1200 m [4000'] (Max)
Data Rate Up to 100 Kbps Under 1200 m [4000']
Environmental
Operating Temperature 0 ~50˚C
Storage Temperature -20 ~ 60˚C
Humidity 0~80% RH, NC
Physical Properties
Housing Plastic
Weight 0.06 kg ( 0.13 lb )
Dimensions (L x W x H) 7.90 x 5.45 x 2.10 cm
(3.11 x 2.15 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

IC485AI

Download

Aten Datasheet - IC485AI

Download (82.58k)

Aten User Manual - IC485AI

Download (290.05k)
