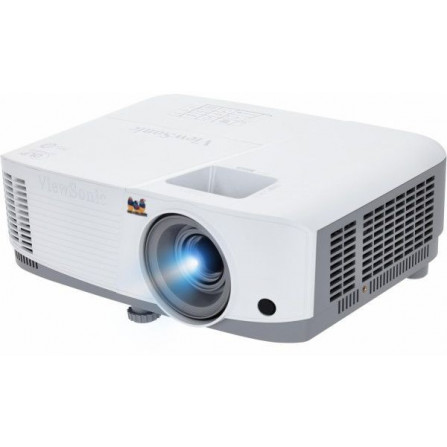

ViewSonic PA503S DLP Projector SVGA 3600 ANSI

SGD $455.00
Tax excluded

ViewSonic PA503S DLP Projector SVGA 3600 ANSI
Model: PA503S


Resolution: 800x600 SVGA
Brightness: 3600 ANSI lumens
Contrast: 22000:1
Weight: 2.2kg

Optional HDMI Cable : (High-Speed with Ethernet)
Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

ViewSonic PA503S DLP Projector SVGA 3600 ANSI
Model: PA503S

Resolution: 800x600 SVGA
Brightness: 3600 ANSI lumens
Contrast: 22000:1
Weight: 2.2kg

DLP, 3D-Ready (for PC & BluRay), 3600lm, SVGA (800x600), up to 15,000 lamp hours, 1.1x zoom, audio pass through, 22000:1,TR 1.96~2.15, close caption, 2w speaker, DPMS, HDMI 1.4a, VGA x1, composite, audio in, mini USB, VGA out, audio out, RS232,

3,600 ANSI Lumen SVGA with HDMI Business & Education Projector

The ViewSonic PA503S offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3600 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503S reduces power consumption and extends the lamp life by up to 15,000 hours.

Extended Lifespan
Users can choose different lamp mode to extend the lamp’s lifespan. When Power Saving setting is on and without any signal input, the projector will automatically switch to Eco Mode and SuperEco Mode Eco Mode: This projector automatically switches from Normal to Eco Mode whenever it has been left idle for 5 minutes. SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 70%, extending the lamp’s lifespan to 15,000 hours on average.

SPECIFICATIONS

SPECIFICATION

Projection System : 0.55" SVGA
Native Resolution : 800x600
DC Type : DC3
Brightness : 3600 ANSI lumens
Contrast Ratio With SuperEco Mode : 22000:1

Display Color : 1.07 Billion Colors
Light Source : Lamp
Light Source Life (Nor/SuperEco) : 5000/15000
Lamp Watt : 190W
Lens : F=2.56-2.68, f=22-24.1 mm
Projection Offset : 120%+/-5%
Throw Ratio : 1.96~2.15
Image Size : 30" - 300"
Throw Distance : 1.19m-13.11m(100" @3.98m)
Keystone : ±40° (Vertical)
Optical Zoom : 1.1x
Audible Noise (Eco) : 27dB
Resolution Support : VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility : 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility : NTSC, PAL, SECAM
Horizontal Frequency : 15K~102KHz
Vertical Scan Rate : 23~120Hz



INPUT

Computer In (share With Component) : 2
Composite : 1
Audio-in (3.5mm) : 1
HDMI : 1 (Back)


OUTPUT

Monitor Out : 1
Audio Out (3.5mm) : 1
Speaker : 2W

CONTROL

RS232 : 1
USB Type Mini B (Services) : 1



OTHERS

Power Supply Voltage : 100-240V+/- 10%, 50/60Hz AC
Power Consumption : Normal: 260W
Standby: <0.5W
Operating Temperature : 0~40?
Carton : Brown
Net Weight : 2.2kg
Dimensions (WxDxH) W/adjustment Foot : 294x218x110mm
Language : English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese



STANDARD ACCESSORY

Power Cord : 1
VGA Cable : 1
Remote Control : 1
QSG & CD : QSG: 1 / CD: NA

OPTIONAL ACCESSORY

Air Filter : RSPL

Warranty: TWO (2) years on-site limited warranty on parts and labour;
Lamp Warranty: ONE (1) year or 1,000 hours on lamp, whichever comes first.

PA503S

Data sheet

Resolution
SVGA (800 x 600)
Brightness (ANSI)
3600
Weight (Kg)
2.2
Display Technology
DLP
Throw Ratio
Standard Throw
Light Source
Lamp
Wireless
No
Interactive
No
Color
White
