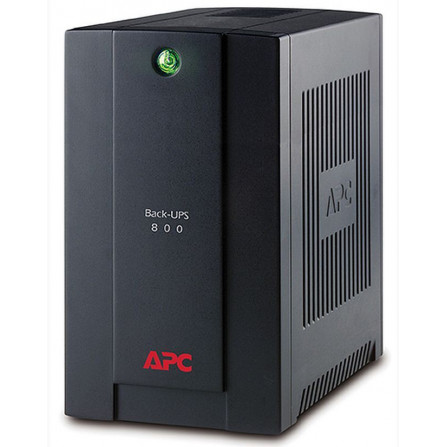

APC BX800LI-MS Back-UPS 800VA, 230V, AVR, Universal and IEC Sockets

SGD $255.73
GST included

APC BX800LI-MS Back-UPS 800VA, 230V, AVR, Universal and IEC Sockets
Model: BX800LI-MS

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC BX800LI-MS Back-UPS 800VA, 230V, AVR, Universal and IEC Sockets
Model: BX800LI-MS

Output

  • Output power capacity
    415Watts / 800VA
  • Max Configurable Power (Watts)
    415Watts / 800VA
  • Nominal Output Voltage
    230V
  • Output Frequency (sync to mains)
    50/60 Hz +/-1 Hz
  • Output Frequency (not synced)
    50/60 Hz +/-1 Hz
  • Topology
    Line Interactive
  • Waveform type
    Stepped approximation to a sinewave
  • Output Connections
    (1) IEC 320 C13 (Battery Backup)
  • Transfer Time
    4ms typical : 6ms maximum

Input

  • Nominal Input Voltage
    230V
  • Input frequency
    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections
    IEC-320 C14, NEMA 5-15P
  • Cord Length
    1.22meters
  • Input voltage range for main operations
    140 - 300V
  • Number of Power Cords
    1
  • Type of Input Protection Required
    3-pole breaker
  • Maximum Input Current
    7.0A
  • Input Power Factor at Full Load
    0.52

Batteries & Runtime

  • Battery type
    Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Included Battery Modules
    1
  • Typical recharge time
    6hour(s)
  • Replacement Battery
    APCRBC110
  • Expected Battery Life (years)
    2 - 4
  • Battery Volt-Amp-Hour Capacity

Communications & Management

  • Control panel
    LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
  • Audible Alarm
    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

  • Surge energy rating
    273Joules

Physical

  • Maximum Height
    200mm , 20.0cm
  • Maximum Width
    115mm , 11.5cm
  • Maximum Depth
    256mm , 25.6cm
  • Net Weight
    6.5kg
  • Shipping weight
    6.7kg
  • Shipping Height
    290mm , 29.0cm
  • Shipping Width
    205mm , 20.5cm
  • Shipping Depth
    345mm , 34.5cm
  • Color
    Black

Environmental

  • Operating Environment
    0 - 40 °C
  • Operating Relative Humidity
    0 - 95 %
  • Operating Elevation
    0-3000meters
  • Storage Temperature
    -15 - 40 °C
  • Storage Relative Humidity
    0 - 95 %
  • Storage Elevation
    0-9000meters
  • Audible noise at 1 meter from surface of unit
    45.0dBA

Conformance

  • Standard warranty
    2 years repair or replace
BX800LI-MS

Data sheet

Rack Mountable
No
UPS Orientation
Tower
Power Rated VA
800
UPS Type
Back-UPS
