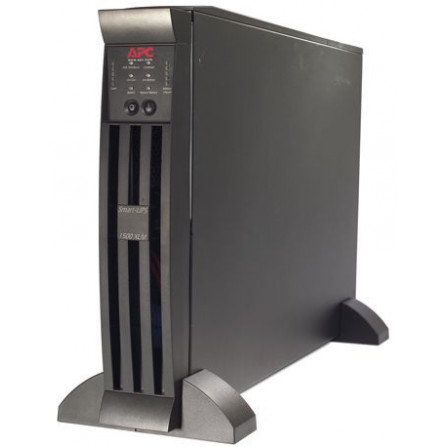

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount Tower

SGD $2,245.93
GST included

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount Tower
Model:
SUM1500RMXLI2U

APC Smart-UPS XL, 1500VA/1425W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U

Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount Tower
Model:
SUM1500RMXLI2U

APC Smart-UPS XL, 1500VA/1425W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U

Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card

Output

Output Power Capacity
1425 Watts / 1500 VA
Max Configurable Power
1425 Watts / 1500 VA
Nominal Output Voltage
230V
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
89%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Crest Factor
up to 5 : 1
Waveform Type
Sine wave
Output Connections
(9) IEC 320 C13
(2) IEC Jumpers

Input

Bypass
Internal Bypass (Automatic and Manual)
Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
160 - 285V
Input voltage adjustable range for mains operation
151 - 302V

Batteries & Runtime

Battery Type
VRLA
Included Battery Modules
1
Typical recharge time
3 hour(s)
Replacement battery cartridge
RBC43
RBC Quantity
1
Typical Backup Time at Half Load
28.3 minutes (712.5 Watts)
Typical Backup Time at Full Load
11.9 minutes (1425 Watts)
Runtime Chart
Smart-UPS XL
Extended Run Options
NEW! APC Smart-UPS XL Modular 1500VA 230V Rackmount/Tower

Communications & Management

Interface Port(s)
DB-9 RS-232,RJ-45 10/100 Base-T,USB
Pre-Installed SmartSlot Cards
AP9619
Control panel
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
Optional

Surge Protection and Filtering

Surge energy rating
490 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height
86.00 mm
Maximum Width
432.00 mm
Maximum depth
678.00 mm
Rack Height
2U
Net Weight
46.82 KG
Shipping Weight
56.82 KG
Shipping Height
250.00 mm
Shipping Width
596.00 mm
Shipping Depth
980.00 mm
Color
Black
Units per Pallet
8.00

Environmental

Operating Environment
0 - 40 C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-20 - 45 C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-9000 meters
Audible noise at 1 meter from surface of unit
55 dBA
Online Thermal Dissipation
300 BTU/hr

Conformance

Regulatory Approvals

C-tick,CE,EN 50091-2,EN 55022 Class A,EN 61000-3-2,GOST

Warranty: 2 Years Local Carry-In Warranty

SUM1500RMXLI2U

Data sheet

UPS Type
Smart-UPS
Rack Mountable
Yes
UPS Orientation
Rack Tower Versatile
Power Rated VA
1500
