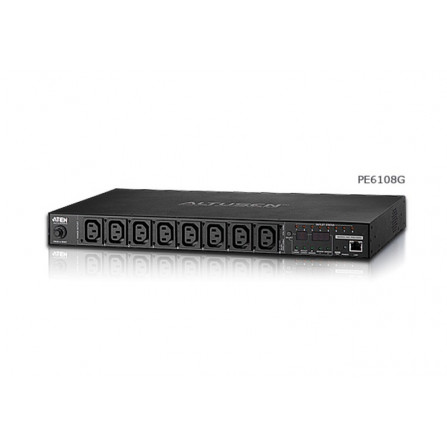

ATEN PE6108G Power Distribution Unit

SGD $876.33
GST included

ATEN PE6108G Power Distribution Unit
Model
: PE6108

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The PE6108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.

The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.

The eco PDU supports any 3rd party v3 SNMP Manager Software and The eco Sensors (Energy Management Software). The eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With ALTUSEN eco Sensors, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.

With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.

*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.

Package Contents

1x PE6108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions


Features
Power Distribution
Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker

Specification
Function PE6108G
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 10A Max
Input Frequency 50-60 Hz
Input Connection IEC 60320 C14
Input Power 2300 VA(Max)
Outlet Type Total: 8 x IEC320 C13
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) C13: 10A(Max)
Maximum Output Current (Bank) 10A(Max)
Maximum Output Current (Total) 10A(Max)
Breakers 1 x 15A Non-Fuse Breaker
Metering Bank level Current, Voltage, VA , PF and KWh Monitoring
Outlet Switching Yes
Environment Sensor Ports 2
Metering Accuracy Voltage Range: 100VAC ~ 250VAC +/-1%
Power Range: 100W ~ Maximum Capacity +/- 2%
Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 43.24 x 22.04 x 4.40 cm
(17.02 x 8.68 x 1.73 in.)
Weight 2.77 kg ( 6.1 lb )
Power Cord Length 3 m
Environmental
Temperature (Operating / Storage) 0 – 50°C / -20 – 60°C
Humidity (Operating & Storage) 0 – 80% RH, Non-Condensing
Compliance
EMC Verification CE, Others by Request
Safety Verification TUV-CB, CE-LVD, Others by Request
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

PE6108G

Data sheet

Input Plug
IEC C14
NEMA5-15P
NEMA6-15P

Download

Aten Datasheet - PE6108G

Download (652.02k)

Aten User Manual - PE6108G

Download (141.05k)
