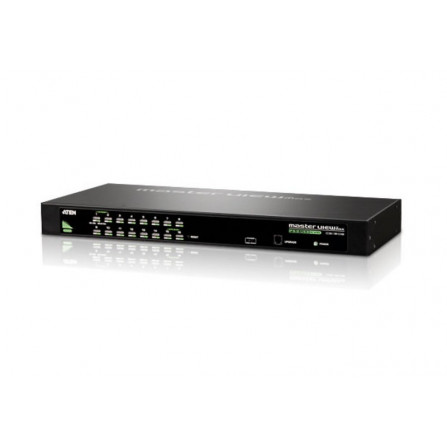

Aten CS1316 16-Port PS/2 - USB KVM Switch

SGD $961.93
GST included

Aten CS1316 16-Port PS/2 - USB KVM Switch
Model:
CS1316

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded* bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.



Features

One USB-PS/2 console controls 16 computers
Cascade up to 2 levels* - control up to 256 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)

*Cascade function only works with USB KVM cable set connections.



Package Content

1x CS1316 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Grounding wire
1x Foot Pad set (4 pads)
1x Power Adapter (AC Models)
1x User Manual
1x Quick Start Guide

Specification

Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
KVM Ports 16 x SPHD-15 Female (Yellow)
Switches
Ports 16 x Pushbutton
Firmware Upgrade 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 (Dark Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC5.3V:3.83W:26BTU
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.10 kg ( 4.63 lb )
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

CS1316

Data sheet

Special Features
Cascadable
Hot-pluggable
Video DynaSync™
Console Interface
PS/2
USB
Max. Resolution
2048 x 1536

Download

Datasheet

Download (1.44M)

User Manual

Download (1.82M)
