Aten EC1000 Energy Box

SGD $501.83
GST included

Aten EC1000 Energy Box
Model:
EC1000

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

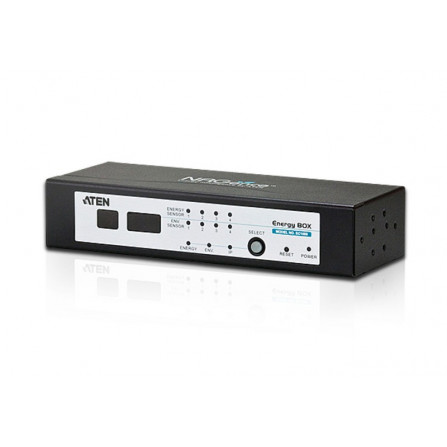

The EC1000 Energy Box is the latest evolution of NRGence™ – ATEN's energy intelligence solutions. It is the intelligent, cost effective solution to monitor ATEN's Energy PDUs – to ensure safe and effective energy-saving power management.

Specification

Energy PDU Connections 4
Port Selection Pushbutton
Connectors
Energy Sensor Port 4 x RJ-45 Female
Environment Sensor Ports 4 x RJ-11 Female
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Switches
Reset 1 x Semi-recessed Pushbutton
Selection 1 x Selection Pushbutton
LEDs
PDU Status 4 (Orange)
Environment Sensor Status 4 (Green)
Selected 1 digit 7-segment (Orange)
Power 1 (Blue)
Link 1 (Orange/Green)
1 (Green)
Monitoring Range 100–240V, 50/60Hz, 0A to 32A(per port)
LED Display Resolution: 0.1A
Precision: ±0.1A@0 ~ 1A, ±1% >1A
Power Consumption DC 5.3 V
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.59 kg ( 1.3 lb )
Dimensions (L x W x H) 20.00 x 7.59 x 4.40 cm
(7.87 x 2.99 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 2 Year Local Warranty

EC1000

Download

Aten Datasheet - EC1000

Download (1.03M)

Aten User Manual - EC1000

Download (1.56M)
