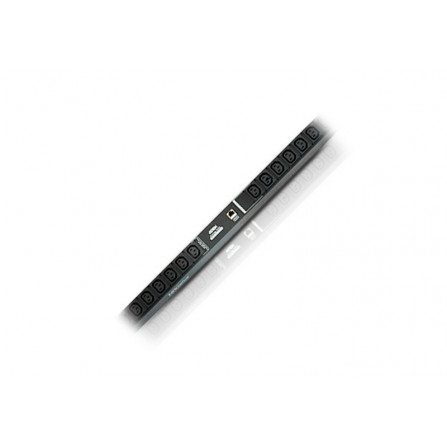

Aten PE1324G Energy PDU

SGD $758.63
GST included

Aten PE1324G Energy PDU
Model:
PE1324G

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The PE1324 Energy PDU contains 24 AC outlets and is available in IEC or NEMA socket configurations. The PE1324 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 24 AC outlets.

The PE1324 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.

* ATEN EC1000 Energy Box and energy management software – eco Sensors are available at www.aten-usa.com.

Package Contents

1x PE1324 Energy PDU
1x Mounting Kit
1x User Instructions

Features

Space saving 0U rack mount design
IEC or NEMA outlet models
Real-time PDU current monitoring

Specification

Function PE1324G
Electrical
Nominal Input Voltage 100 – 240 VAC
Maximum Input Current 32A(Max)
Input Frequency 50-60 Hz
Input Connection IEC 60309 32A
Input Power 7360 VA(Max)
Outlet Type Total: 24 x IEC320 C13
Bank1: Outlet 1 – 12; 12 x C13
Bank2: Outlet 13 – 24; 12 x C13
Nominal Output Voltage 100 – 240 VAC
Maximum Output Current (Outlet) 10A(Max)
Maximum Output Current (Bank) 16A(Max)
Maximum Output Current (Total) 32A(Max)
Breakers 2 x 16A UL489 Breaker
Metering Bank Level Current Monitoring (Via EC1000 Energy Box)
Outlet Switching None
Environment Sensor Ports 0
Metering Accuracy Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1%
Physical Properties
Dimensions (L x W x H) 130.00 x 4.04 x 4.40 cm
(51.18 x 1.59 x 1.73 in.)
Weight 3.60 kg ( 7.93 lb )
Power Cord Length 1.6 m
Environmental
Temperature (Operating / Storage) 0–50°C / -20–60°C
Humidity (Operating & Storage) 0–80% RH, Non-Condensing
Compliance
EMC Verification CE, C-Tick, Others by Request
Safety Verification TUV-CB, GOST, Others by Request
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 2 Year Local Warranty

PE1324G

Data sheet

Input Plug
IEC60309 32A
NEMAL6-30P

Download

Aten Datasheet - PE1324G

Download (173.57k)

Aten User Manual - PE1324G

Download (1.27M)
