Aten CS82A 2-Port PS2 KVM Switch non-powered

SGD $138.03
GST included

Aten CS82A 2-Port PS2 KVM Switch non-powered
Model:
CS82A

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

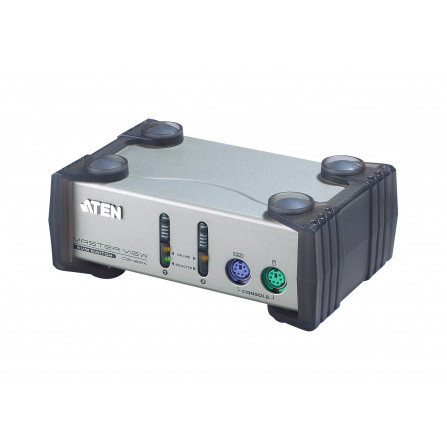

CS82A is a KVM switch with built-in PS/2 on each of the front and rear panels. It can control 2 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, durable and small enclosure design is its important feature.

Package Contents

1x 2 Port KVM Switch
2x KVM Cable (VGA, PS/2; 1.2m/4ft)
1x User Instructions

Features

One PS/2 console controls 2 computers.
Computer selection via front panel pushbuttons and hotkeys.
Superior video quality- up to 1920 x 1440; DDC2B.
Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.
Compact, Sturdy, Durable Metal Housing.
Keyboard and mouse emulation for error free booting.
Auto Scan function to monitor computer operation.
Non-powered.
OS Compatibility: DOS, WIN 98, WIN ME, WIN NT, WIN 2K, WIN XP, WIN 2003, Windows Vista, LINUX. Mac 8.6/9/10 and SUN Solaris 8/9 (with optional adapter).

Specification

Computer Connections 2
Port Selection Hotkey, Pushbutton
Connectors
Console Ports 1 x HDB-15 Female (Blue)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
KVM Ports 2 x HDB-15 Male (Blue)
2 x 6-pin Mini-DIN Female (Purple)
2 x 6-pin Mini-DIN Female (Green)
Power 1 x DC Jack
Switches
Ports 2 x Pushbutton
LEDs
Online 2 (Orange)
Selected 2 (Green)
Emulation
Keyboard / Mouse PS/2
Video 1920 x 1440 @ 60Hz; DDC2B
Scan Interval 3, 5, 10, 20 Seconds
Power Consumption DC 9V, 1.08W
Environmental
Operating Temperature 0°~50°C
Storage Temperature -20°~60°C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.54 kg ( 1.19 lb )
Dimensions (L x W x H) 14.00 x 8.80 x 5.55 cm
(5.51 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

CS82A

Data sheet

Console Interface
PS/2
Max. Resolution
1920 x 1200

Download

Aten Datasheet - CS82A

Download (333.47k)

Aten User Manual - CS82A

Download (308.48k)
