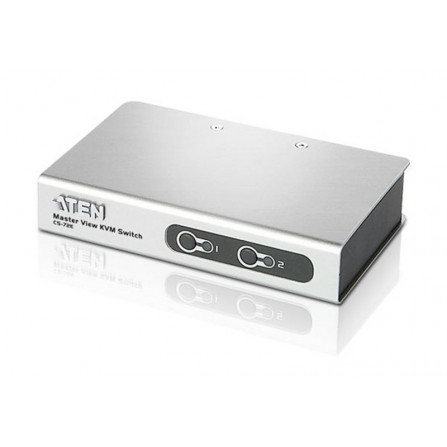

Aten CS72E 2-Port PS2 KVM Switch Non-powered

SGD $116.63
GST included

Aten CS72E 2-Port PS2 KVM Switch Non-powered
Model: CS72E

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The KVM (Keyboard, Video, Mouse) switch is a control unit that allows access to two computers from a single console (keyboard, monitor, and mouse). With its custom designed connectors, the significantly reduces the number of ports required for a 2 port KVM switch. The design features a custom SPHD-15 male connector for the keyboard, video, and mouse, and SPHD-15 female connectors for the cables that connect the switch to the computers.

Package Contents

1x 2 Port PS/2 KVM Switch
2x Custom KVM Cable (VGA, PS/2; 1.2m/4ft)
1x Console Adapter Cable (50cm)
1x User Instructions

Features

One PS/2 console controls 2 computers.
Compact, modern case for convenient attractive placement.
Custom connector layout.
Power on detection - automatically switches to the first powered on port.
Computer selection via front panel pushbuttons and hotkeys.
Superior video quality - up to 2048 x 1536; DDC2B.
Supports Microsoft IntelliMouse and the scrolling wheel on most mice.
Auto Scan function to monitor computer operation.
Non-powered.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX and FreeBSD

Specification

Computer Connections 2
Port Selection Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-15 Male (Yellow)
KVM Ports 2 x SPHD-15 Female (Yellow)
Power 1 x DC Jack
Switches
Ports 2 x Pushbutton
LEDs
Selected 2 (Green)
Emulation
Keyboard / Mouse PS/2
Video 2048 x 1536 @ 60Hz; DDC2B
Scan Interval 5 seconds
Power Consumption DC 9V, 0.9W
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.15 x 2.50 cm
(4.92 x 3.21 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

This device comes with Free Complimentary Cables
*Complimentary cables are given based on availability and subject to changes.

(1.2m Cable) x 2 units
CS72E

Data sheet

Console Interface
PS/2
Max. Resolution
2048 x 1536

Download

Aten Datasheet - CS72E

Download (453.9k)

Aten User Manual - CS72E

Download (830.15k)

Aten Quick Start Guide - CS72E

Download (607.46k)
