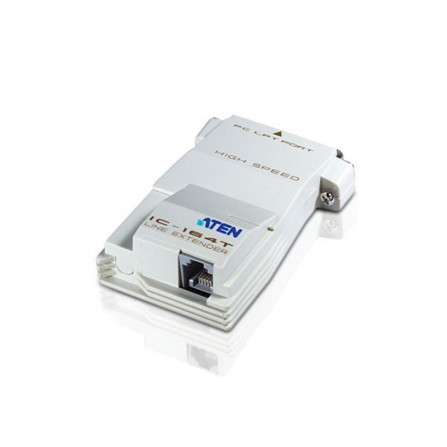

Aten IC164 Non-Powered / High Speed Parallel Data Extender

SGD $101.65
GST included

Aten IC164 Non-Powered / High Speed Parallel Data Extender

Model : IC164

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

The IC164 parallel signal extender can extend the distance between your parallel peripherals and the PC up to 400m, thus allowing you to control parallel peripherals from far away. The local unit and remote unit of IC-164 are connected with the RJ-11 cable, which is easy and time-saving to install.

Features

No external power required.
Easy to install and operate.
Compact size.
Cable distance of up to 400m (1300').
OS Support: Windows 2000, Windows XP

Specification

Function IC-164R (Receiver) IC-164T (Transmitter)
Connectors 1 x C-36 Male
1 x RJ-11 Jack Female
1 DB x 25 Male
1 x RJ-11 Jack Female
Cable Type 4 Wire Telephone Line 4 Wire Telephone Line
Cable Length 400 m [1300'] (Max.) 400 m [1300'] (Max.)
Data Rate 21 Kbytes/Sec. 21 Kbytes/Sec.
Power (Optional) DC 9V, 0.4W (Min.) DC 9V, 0.4W (Min.)
Environmental
Operating Temperature 0 ~50˚C 0 ~50˚C
Storage Temperature -20 ~ 60˚C -20 ~ 60˚C
Humidity 0~80% RH, Non-condensing 0~80% RH, Non-condensing
Physical Properties
Housing Plastic Plastic
Weight 0.05 kg ( 0.11 lb ) 0.05 kg ( 0.11 lb )
Dimensions (L x W x H) 7.60 x 6.20 x 2.68 cm
(2.99 x 2.44 x 1.06 in.)
7.60 x 6.20 x 2.68 cm
(2.99 x 2.44 x 1.06 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

IC164
