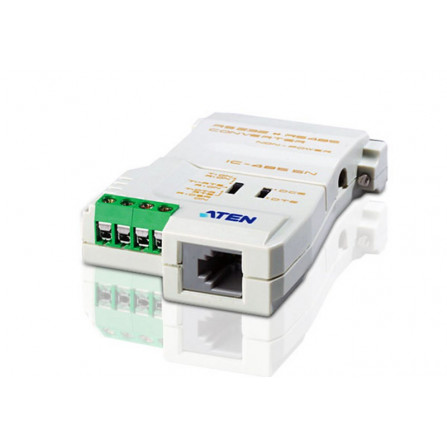

Aten IC485SN RS-232/RS-485 Interface Converter

SGD $116.63
GST included

Aten IC485SN RS-232/RS-485 Interface Converter
Model:
IC485SN

Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

IC485SN is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.) and needs no external power supply.

Features

Data transmission controlled by the RTS signal.
DCE/DTE selectable.
Point to point, multidrop, and simplex/duplex link selection.
Four wire full duplex; two wire half duplex.
Compact size.
Cable distance of up to 1200m (4000 ft.).
Non powered operation.
Supports baud rates up to 115.2kbps.
OS Support: Windows 2000, Windows XP

Specification

Connectors 1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
1x RJ-11 Female
Switches DCE, DTE
TxON, RxON
TxRTS, RxON
TxDTR/RTS,RxDSR/ON
Power Consumption DC9V, 0.9W (Max)
Signal Range 1200 m [4000'] (Max)
Data Rate Up to 100 Kbps under 1200 m [4000']
Environmental
Operating Temperature 0 ~50˚C
Storage Temperature -20 ~ 60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.06 kg ( 0.13 lb )
Dimensions (L x W x H) 7.90 x 5.45 x 2.10 cm
(3.11 x 2.15 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Warranty: 1 Year Local Warranty

IC485SN

Download

Aten Datasheet - IC485SN

Download (1.49M)

Aten User Manual - IC485SN

Download (554.55k)
