ViewSonic PJD6683ws DLP Projector WXGA 3000 ANSI

SGD $786.45
GST included

ViewSonic PJD6683ws DLP Projector WXGA 3000 ANSI
Model:
PJD6683ws

Resolution: WXGA 1280x800 (Native)
Brightness: 3,000 Lumens
Weight: 3.0 kg
Contrast Ratio: 15,000:1 (w/ DynamicEco™)

Optional HDMI Cable : (High-Speed with Ethernet)
Quantity

  • Singapore Registered Business. Local office & Support. Singapore Registered Business. Local office & Support.
  • All products come with Local Singapore warranty. All products come with Local Singapore warranty.
  • Fast Delivery within Singapore Fast Delivery within Singapore

ViewSonic PJD6683ws DLP Projector WXGA 3000 ANSI
Model:
PJD6683ws

Resolution: WXGA 1280x800 (Native)
Brightness: 3,000 Lumens
Weight: 3.0 kg
Contrast Ratio: 15,000:1 (w/ DynamicEco™)

Short Throw Networkable WXGA Projector Short Distance–Big Presentations

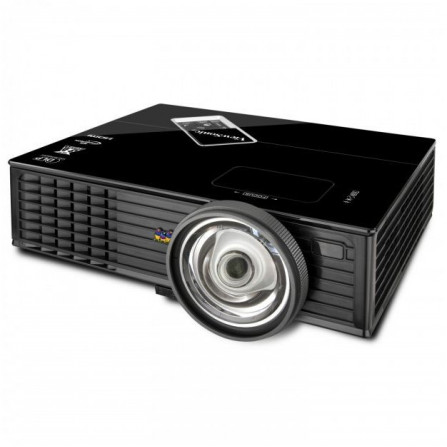

The ViewSonic® PJD6683ws is an advanced networkable, wide format, short throw DLP® projector ideal for classroom and corporate environments. With its short throw lens, the projector can project a 90" image from only 3 feet away. Having the projector close to the screen eliminates cast shadows and blinding light for presenters. PJD6683ws delivers amazingly bright, clear widescreen with WXGA 1280x800 native resolution, 3,000 ANSI lumens and 15,000:1 high contrast ratio, while BrilliantColor™ technology provides vivid, vibrant colors. This networkable projector is equipped with Crestron® e-Control™ and RoomView Express™, making it easy for IT managers to monitor and control the projector from their workstations. In addition, the projector is AMX® Device Discovery™ certified which enhances it to be a robust network projector for any size of campus or enterprise. With the new DynamicEco™ technology, presenters can control audiences’ focus by dimming the brightness down to 30% with a simple click of the remote. The PJD6683ws also comes standard with multiple PC and video inputs including HDMI, 120Hz/3D-Ready and 10w integrated speaker. The PJD6683ws widescreen, networkable, short throw WXGA DLP® projector delivers outstanding projection performance for both education and businesses.

COMPATIBILITY

PC VGA to UXGA
Mac® Up to SXGA+ (requires MAC adapter)

REGULATIONS

CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE, RoHS

CONNECTOR

Digital HDMI 1.3
Audio Input 3.5mm mini jack (x2)
Audio Out 3.5mm mini jack
Network RJ-45
RGB Input 15-pin mini D- sub (x2)
Composite Input RCA jack
S-Video Input 4-pin mini-DIN
Component 15-pin mini D-sub (x2, shared with RGB)
RGB Output 15-pin mini D- sub
Control RS-232 (DB-9)
USB Mini B (for mouse control and service)

POWER

Voltage 100 ~ 240VAC (Auto Switching), 50/60Hz (universal)
Consumption 310W (typ) <1w stand-by="" mode="" td="">

CONTROLS

Basic Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
OSD Display, Picture, Source, System Setup (Basic), System Setup (Advanced), Information (See user guide for full OSD functionality)

OPERATING CONDITIONS

Temperature 32 F - 104 F (0ºC-40ºC)
Humidity 10%-90% (non-condensing)
Altitude 0~6,000 ft (1,800 m), operational up to 10,000 ft (3048 m)

DISPLAY

Type 0.65" Digital Micromirror Device (DLP™)
Resolution WXGA 1280x800 (Native)
Lens Fixed optical zoom / manual optical focus
Keystone Vertical digital keystone correction, +/- 40º
Display size 30" - 300" / 0.8 m - 7.6 m (Diagonal)
Throw Distance 1.0ft–10.4ft / 0.3m–3.2m
Throw Ratio 0.5:1
Lamp type 240 watt
Lamp life (normal/eco-mode) 3,500 / 5,000*
Brightness 3,000 Lumens
Contrast Ratio 15,000:1 (w/ DynamicEco™)
Aspect Ratio 16:10 (native), 4:3, auto
Color Wheel 6-Seg RGBCYW / 7200RPM
Color Gamut 85% NTSC 1931 CIE
Color Depth 30 bits, 1.07B Colors (10+10+10)

WARRANTY

3-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange® service**

NOISE LEVEL

Normal 33dB
Eco-mode 29dB

AUDIO

Speakers 10W

INPUT SIGNAL

Computer and Video NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), 480i and 576i, 480p and 576p, 720p, 1080i, 1080p
Frequency Fh: 31 -100KHz, Fv: 48 -120Hz

DIMENSIONS (WxHxD)

Physical 11.6" x 3.3" x 9.5" (294 x 84 x 242 mm)
Packaging 14.2 x 15 x 7.6 in. / 360 x 380 x 192 mm

WEIGHT

Net 6.6 lb. / 3.0 kg
Gross 9.9 lb. / 4.5 kg

Warranty (Projector): THREE (3) years on-site limited warranty on parts and labour
Warranty (Lamp): ONE (1) year or 1,000 hours on lamp (whichever comes first)

PJD6683WS

Data sheet

Resolution
WXGA (1280 x 800)
Brightness (ANSI)
3000
Weight (Kg)
3.0
Display Technology
DLP
Throw Ratio
Short Throw
Light Source
Lamp
Wireless
No
Interactive
No
Color
Black
